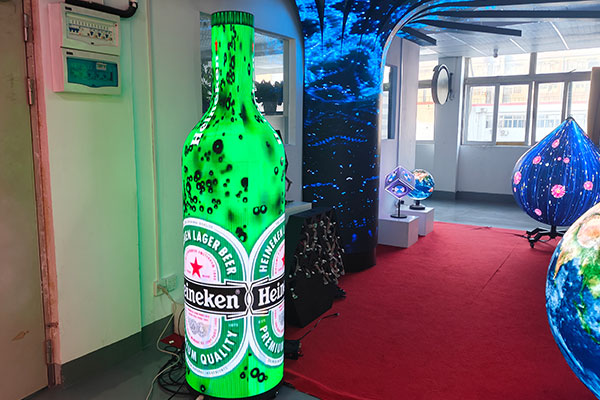

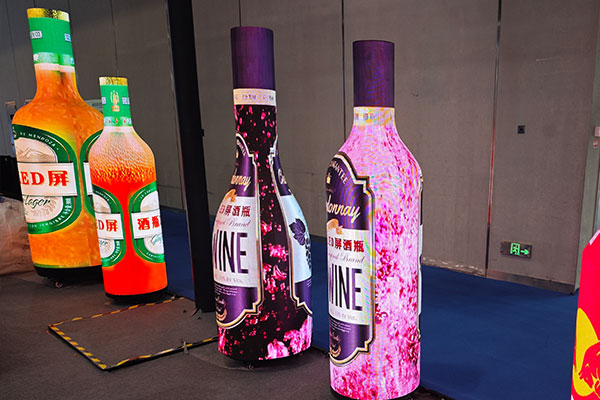

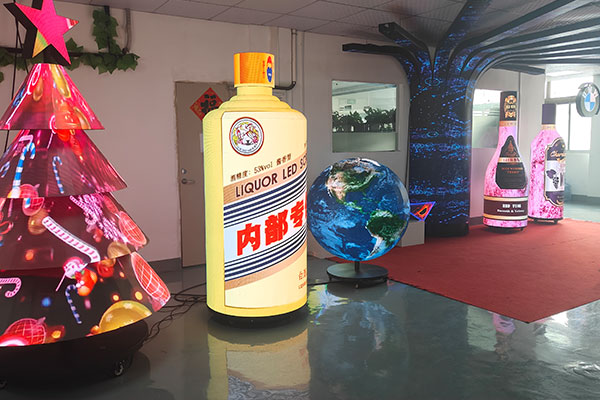

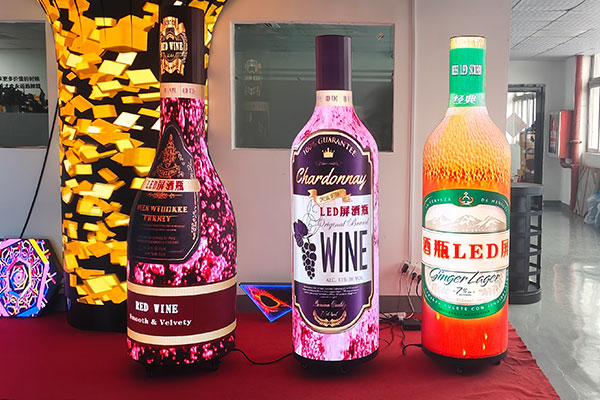

Bottle LED display solution

Application: Indoor & Outdoor

LED Type: 1R1G1B Full Color

Pixel Pitch: P1.2 / P1.5 / P1.8 / P1.9 / P2.5 / P2.6 / P2.9 / P3 / P3.9 / P4

Screen Size: Fully customized to your design concept

Brightness: Indoor up to 800 cd/m². Outdoor up to 6000 cd/㎡

Refresh Rate: 3840–7680 Hz (camera-friendly, flicker-free playback)

Control System: Synchronous / Asynchronous

Waterproof Rating: Indoor IP45 | Outdoor IP65

Operating Temperature: -40℃ to +70℃

Power Supply: AC 110–240V

Average Power Consumption: 150W/㎡

Supplier Type: TOOSEN OEM / ODM Manufacturer

Each screen is custom-built to precisely match your design — whether it’s a wine bottle, beer can, or brand-shaped display, ensuring a perfect combination of creative design and engineering stability.

Here’s a detailed breakdown of Wine Bottle LED Screen pricing — designed to help you understand the key cost factors, what influences them, and how to plan your budget effectively.

LED Display Pricing: Key Factors

1.Shape & Structural Complexity

Unique shapes (like bottles or cans) require specialized frame design, increasing engineering and assembly costs.

2.Pixel Pitch & Resolution

Smaller pixel pitches (e.g., P1.5 or P1.9) deliver sharper images but cost more per square meter.

3.Size & Display Area

Larger screens need more modules and power, directly affecting the total price.

4.Indoor vs. Outdoor Use

Outdoor models with IP65 waterproofing and higher brightness (up to 6000cd/m²) are more expensive.

5.Control System & Components

High-refresh systems (3840–7680Hz) and advanced controllers ensure camera-friendly performance.

Choosing the right Wine Bottle LED display for an event involves focusing on key factors to match your venue, audience, and goals:

1.Performance

Indoor events: Brightness 800-1500 cd/m², anti-glare panels (prevent reflections from venue lights); no need for waterproofing, but ensure dust resistance.

Outdoor events: Must have IP65+ protection rating (rain/dust resistance), brightness 5000-8000 cd/㎡ (counter sunlight), and white cabinets with anti-yellowing materials (avoid discoloration from UV rays).

2. Compatibility

Ensure connections with event devices (laptops, cameras, controllers) via HDMI/USB-C/5G—seamless playback of PPT, videos, or live feeds.

3. Pixel pitch

Short distance with P1.8-P2.5 for clear details without graininess

Medium distance with P2.5-P4 for balance, clarity, and cost

Long distance with P4-P6, no need for overly small pitch

4. Balance Budget & Effect

Rental vs. purchase: Temporary events (most cases) are cost-effective to rent—white bottle screens are often custom-designed, so purchasing has high storage and maintenance costs.

5. Details

Seamless splicing: White frames highlight gaps more easily—select modules with ≤0.5mm splicing tolerance to avoid obvious "white seams" that ruin the visual effect.
